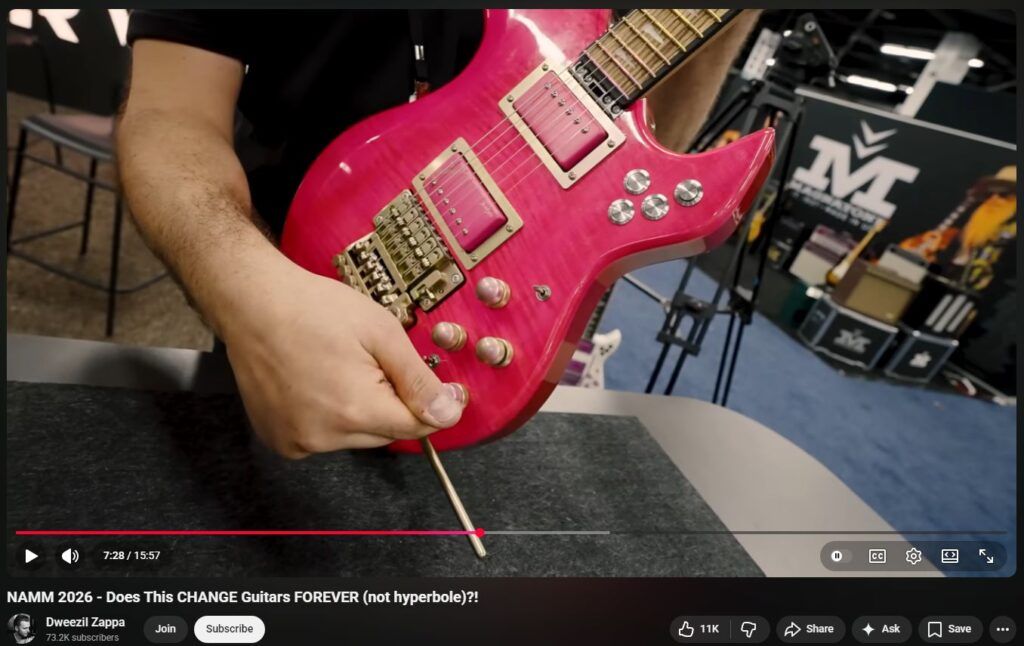

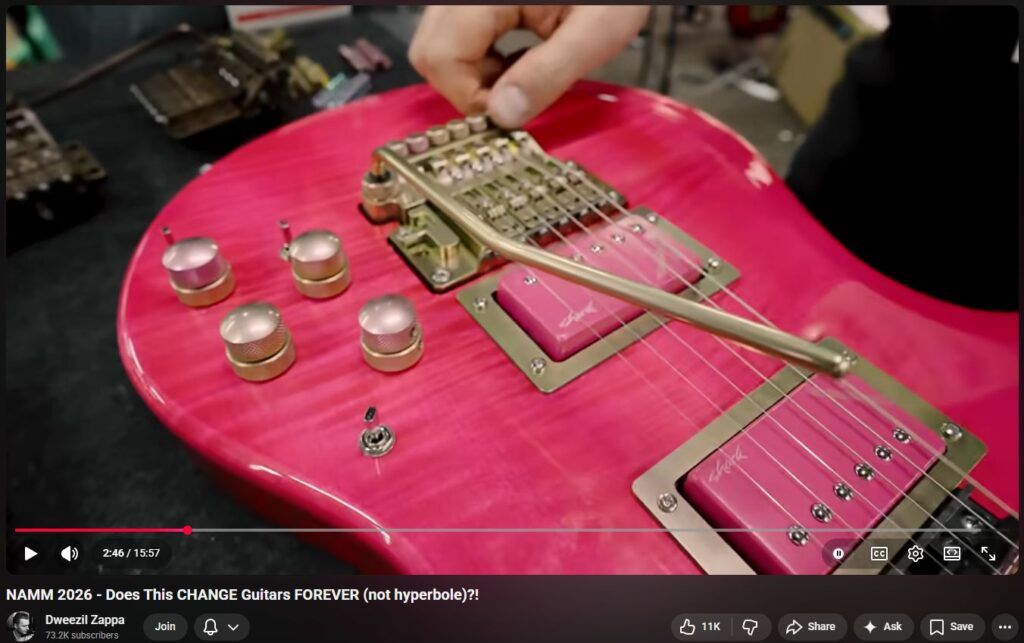

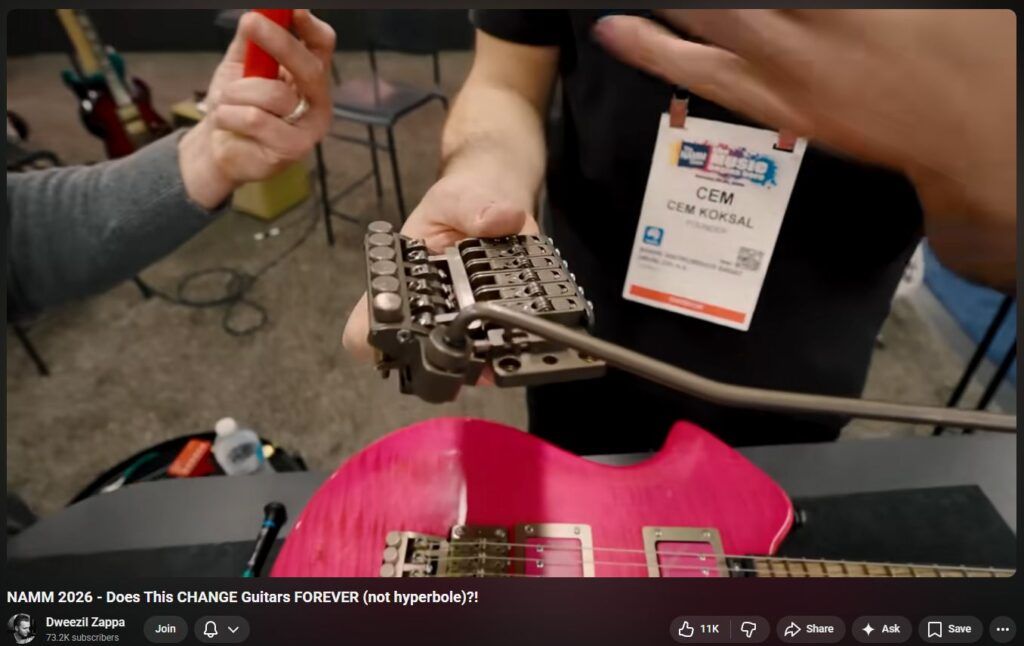

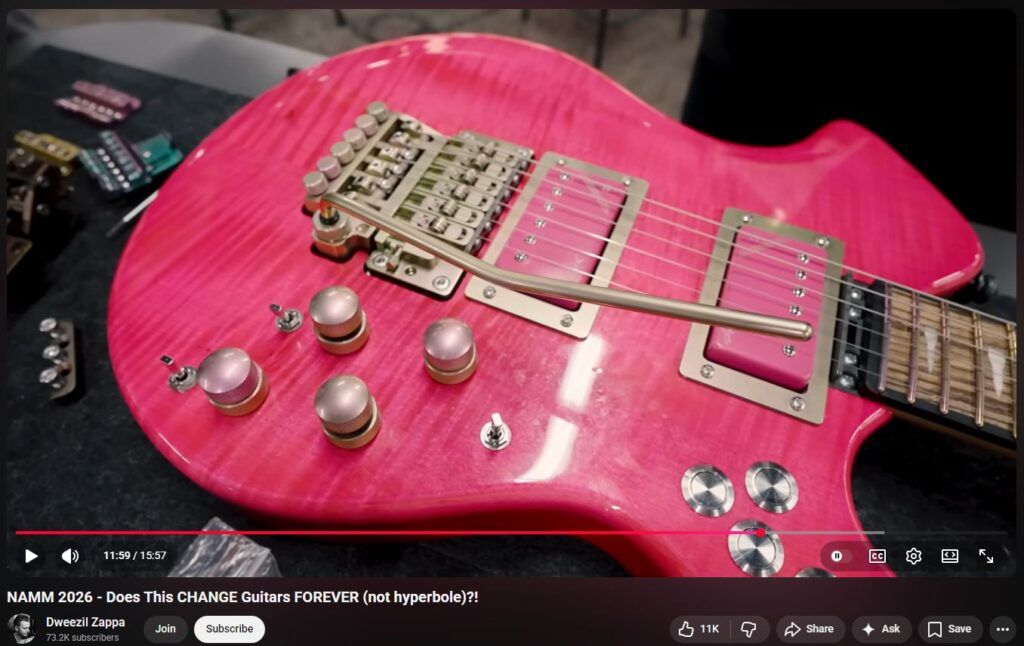

Bridge block that allow independent string bending without detuning any other string.

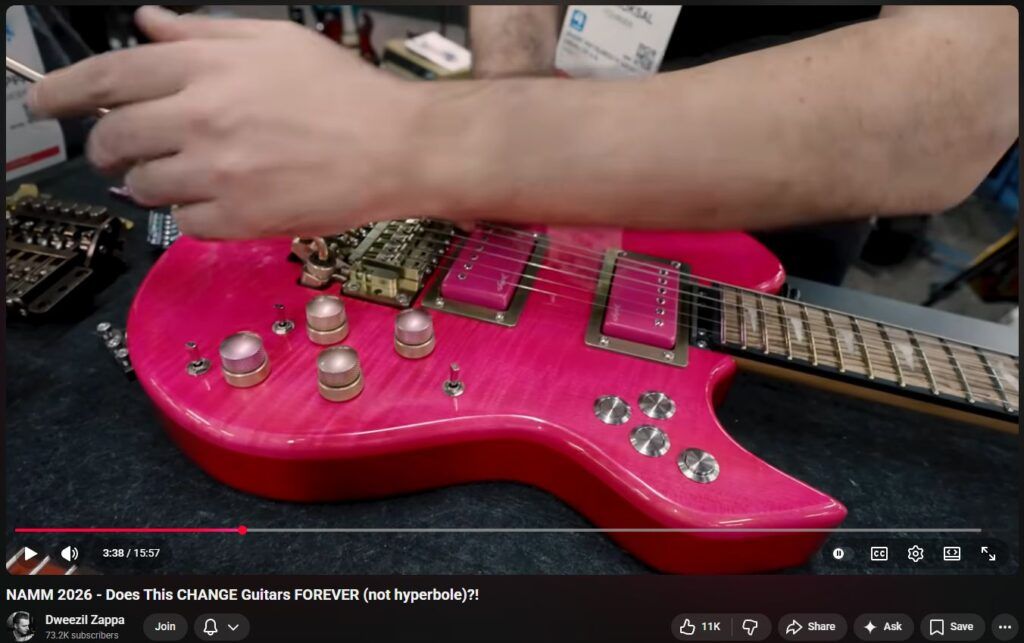

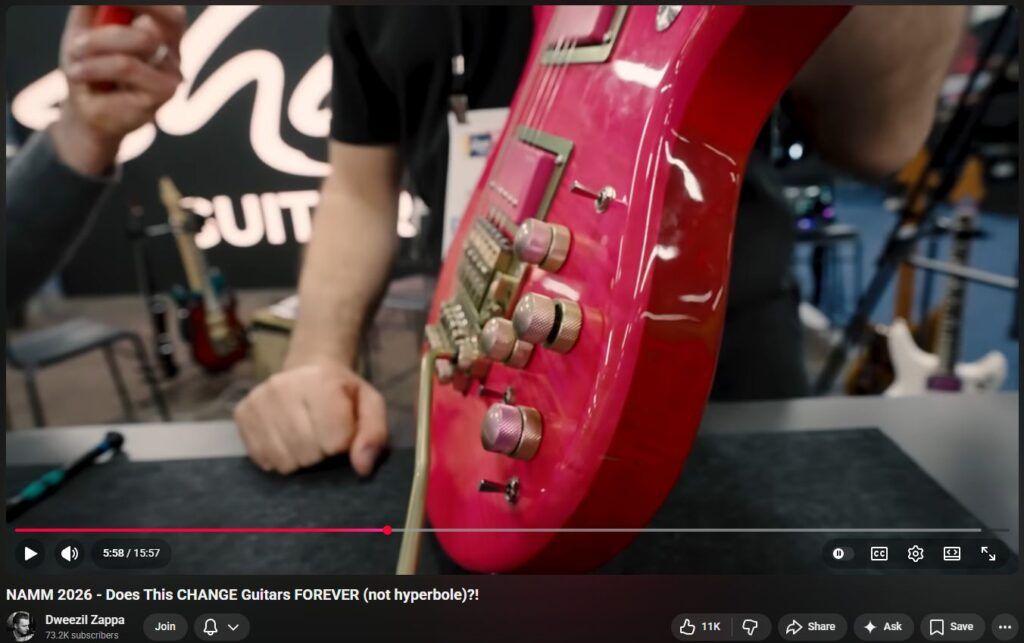

4 dual-gang pots allow on-guitar control of all plug-in effects settings.
4 on-guitar face effects-pedal bypass switches.

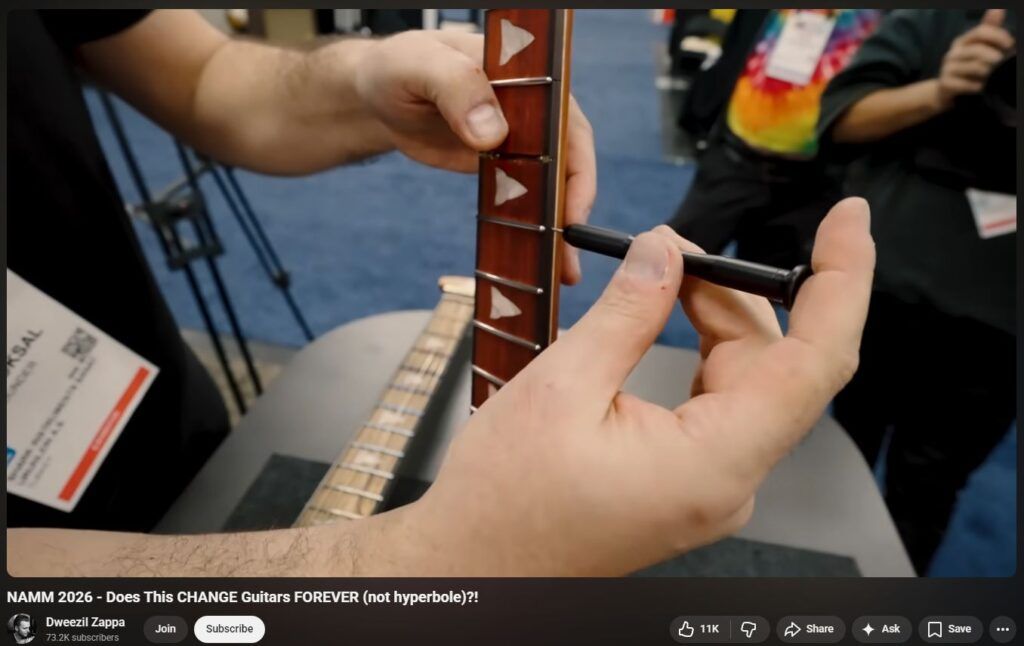

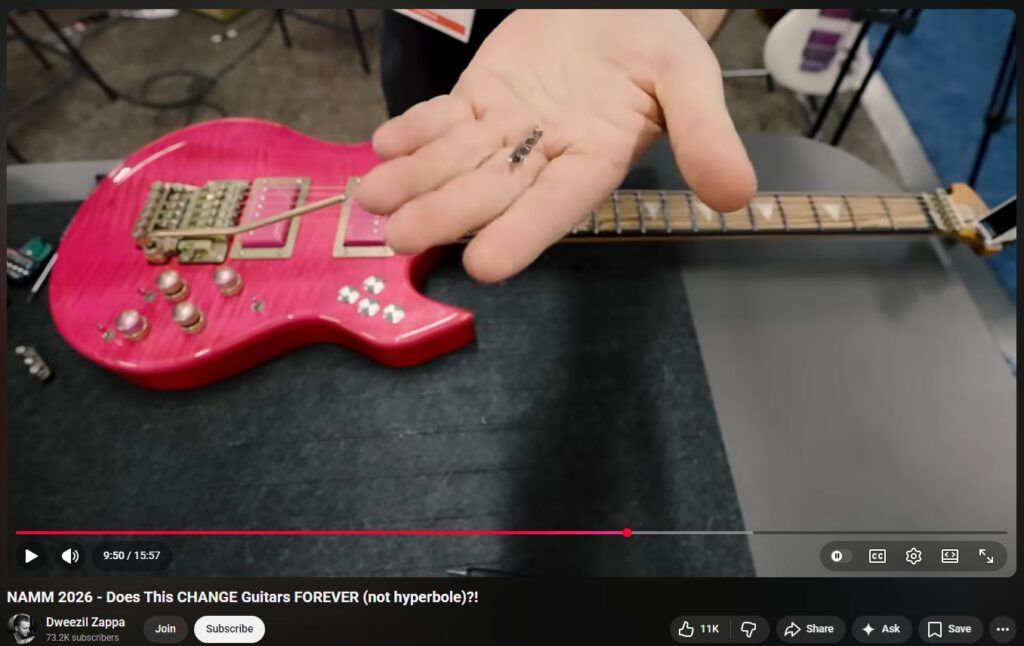

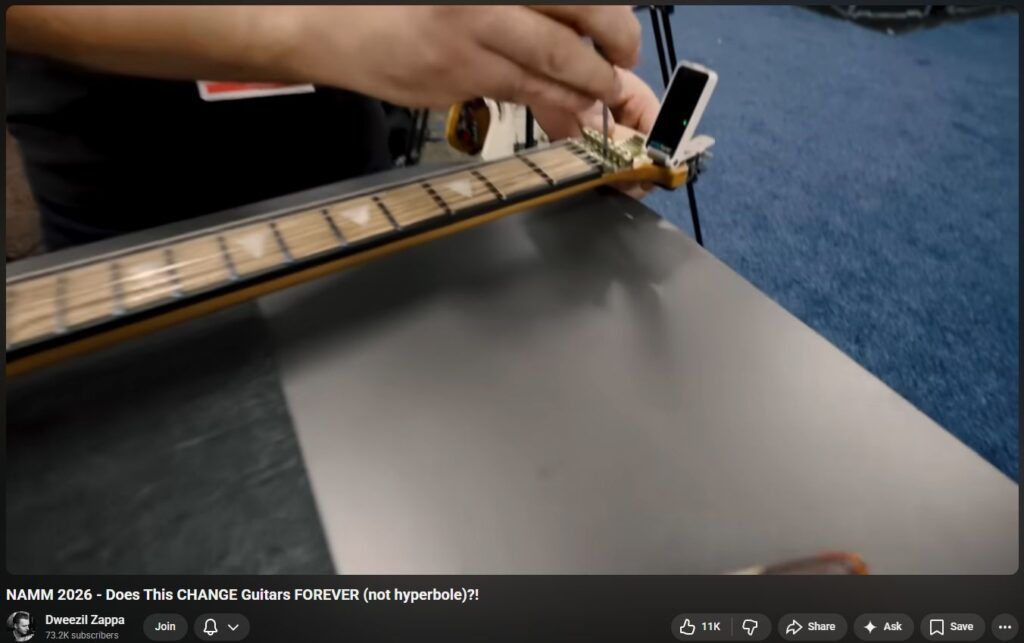

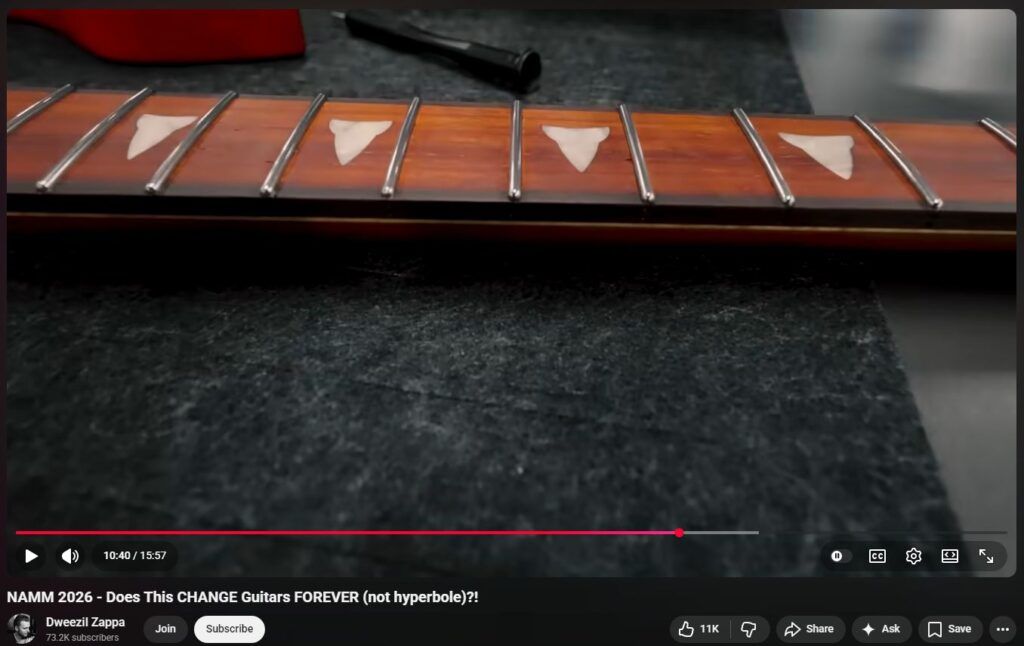

Patent to “revolutionize the fretted-instruments world.” — as in all fretted instrument. “We built the ultimate fretting system.” — “You can [with screwdriver] clibrate the height-action of each fret…on each side…the most precise fretted instrument on the planet.” [The fret height can be compensated to allow same-distance-to-fret-from-string despite varying string thicknesses.]

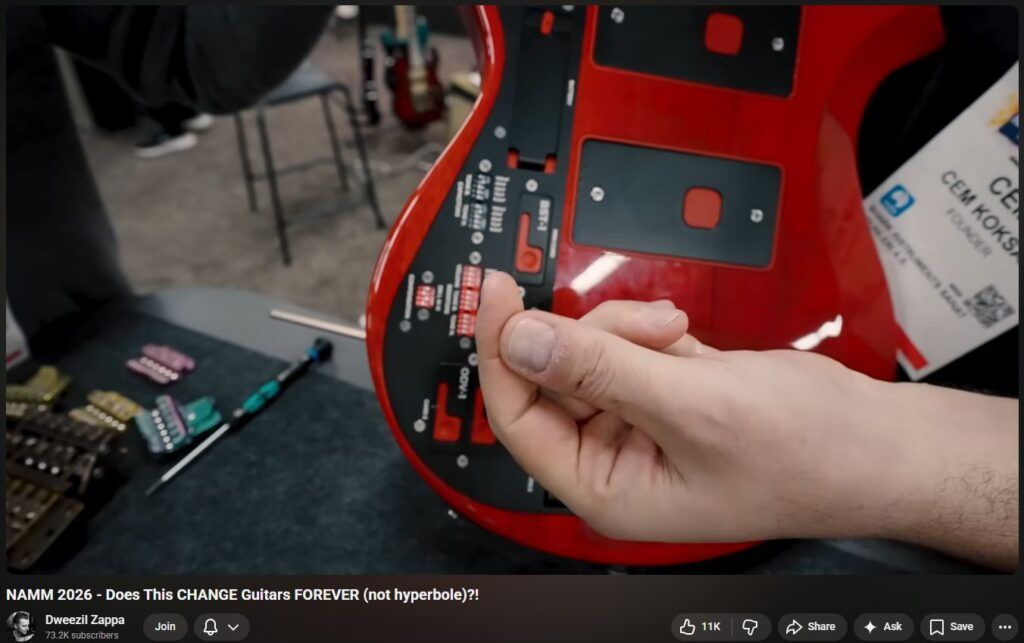

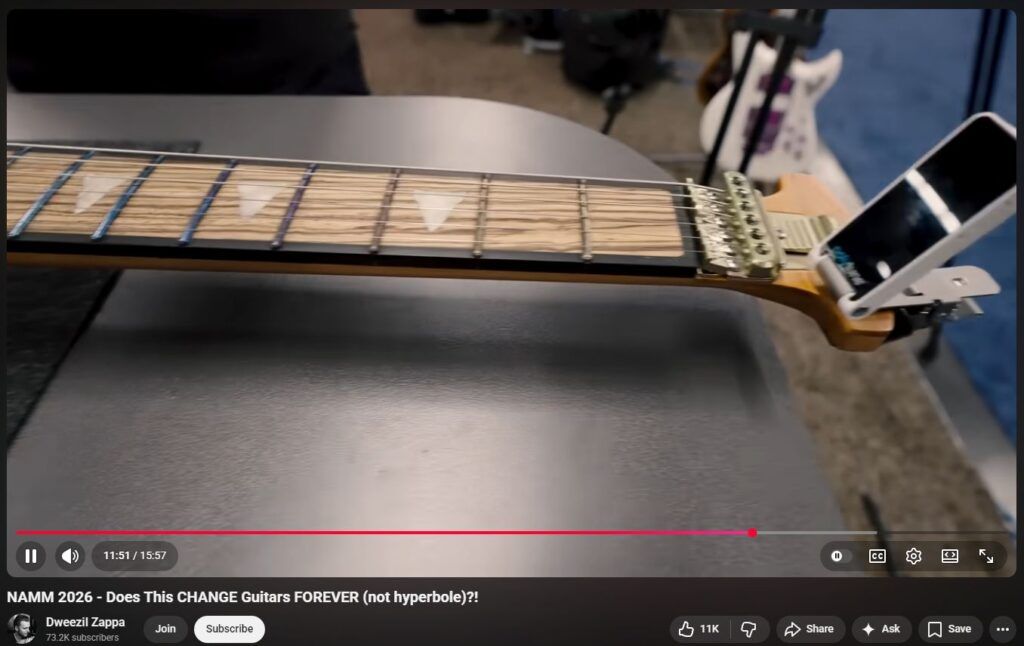

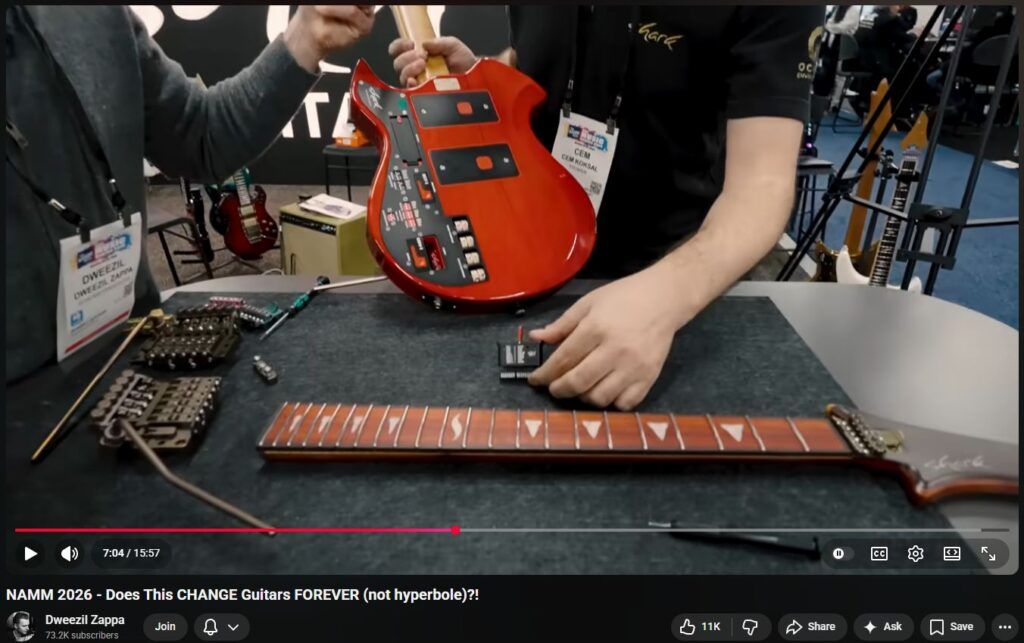

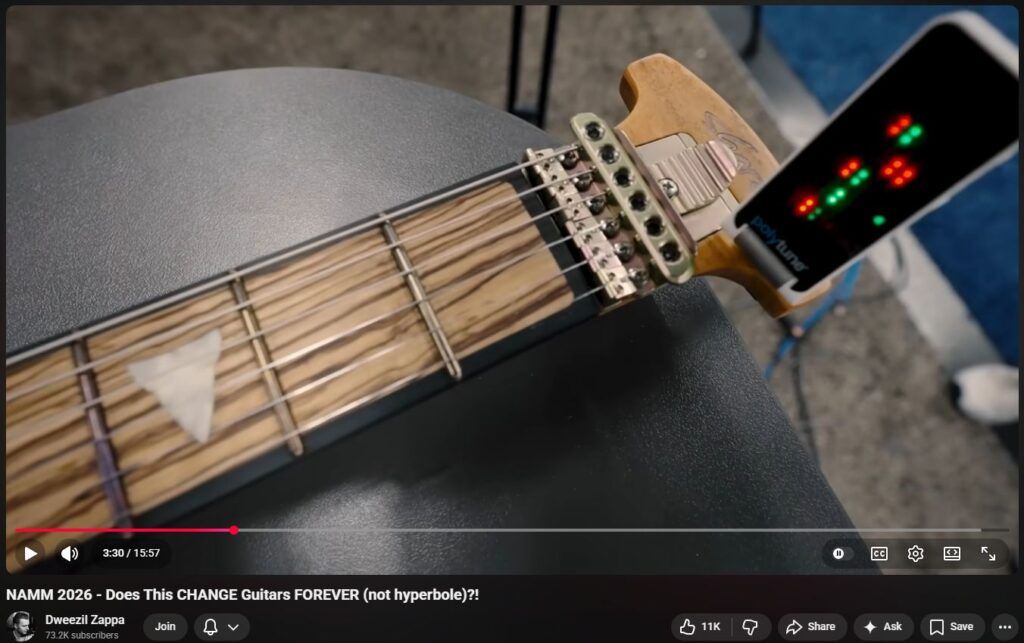

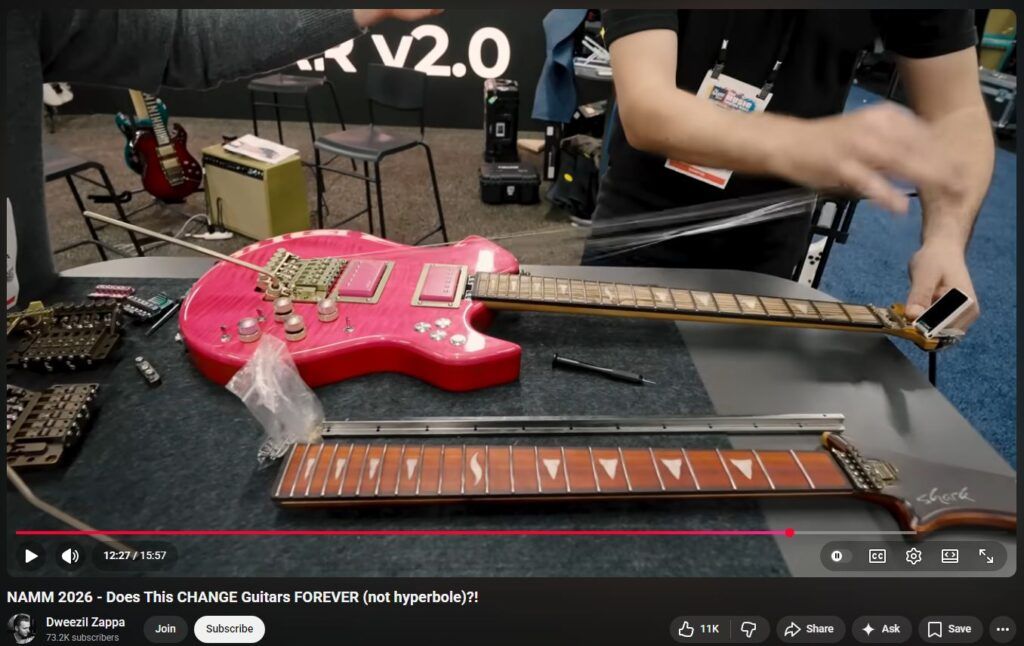

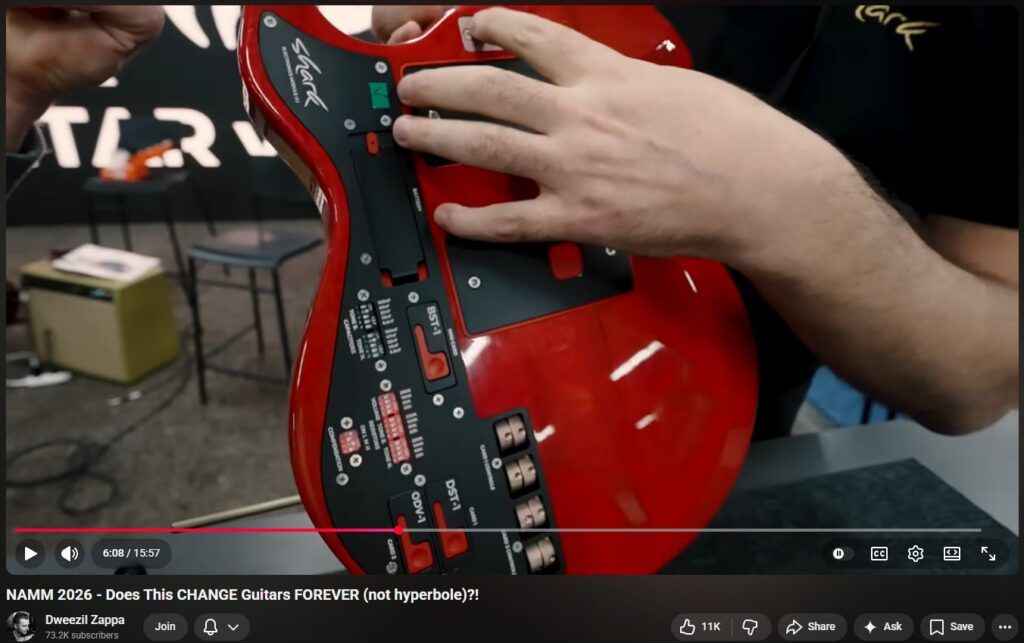

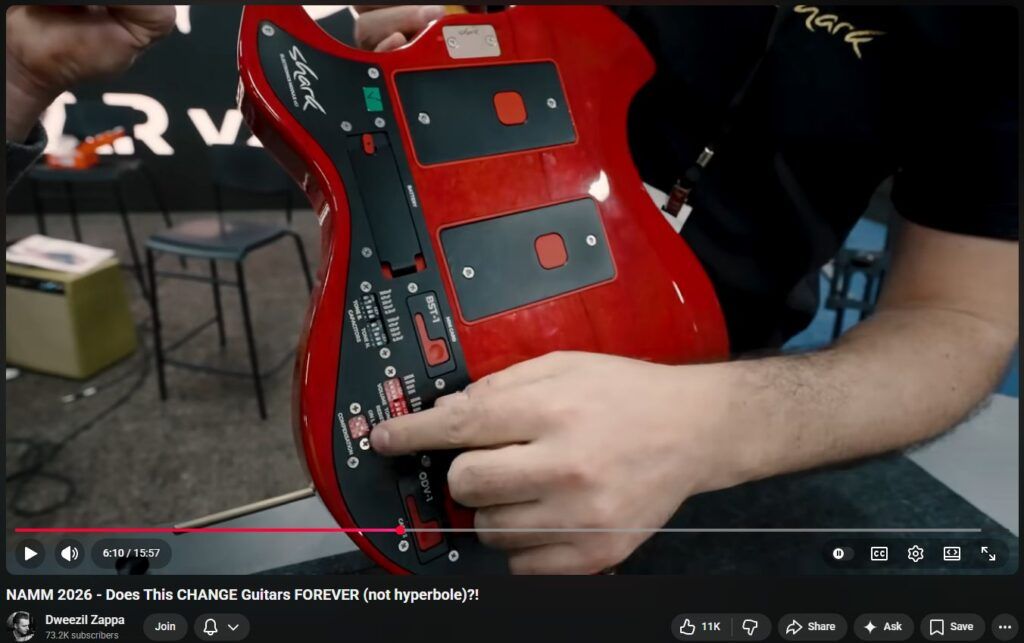

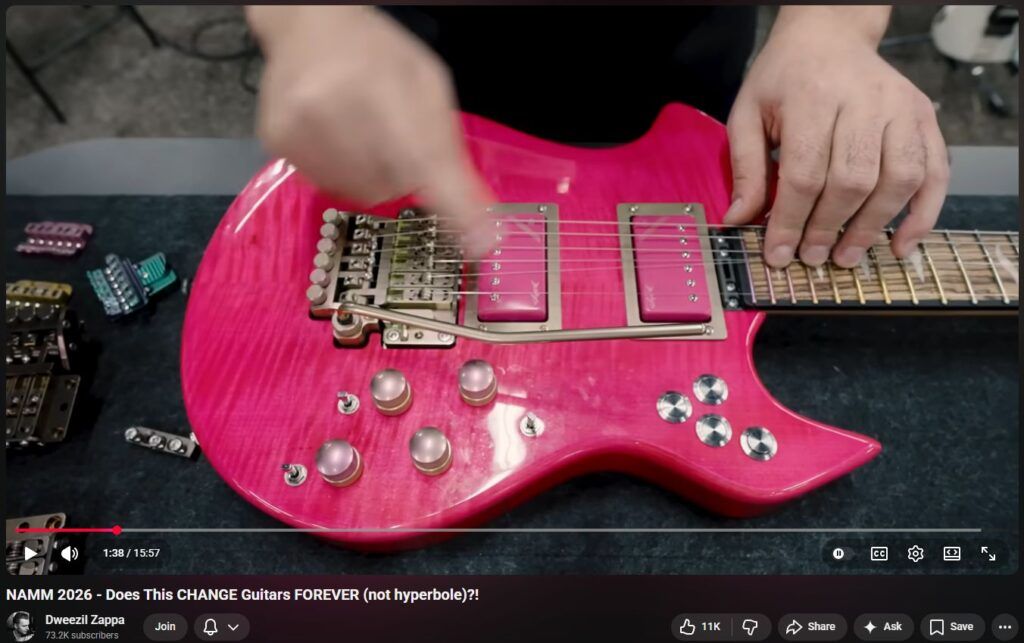

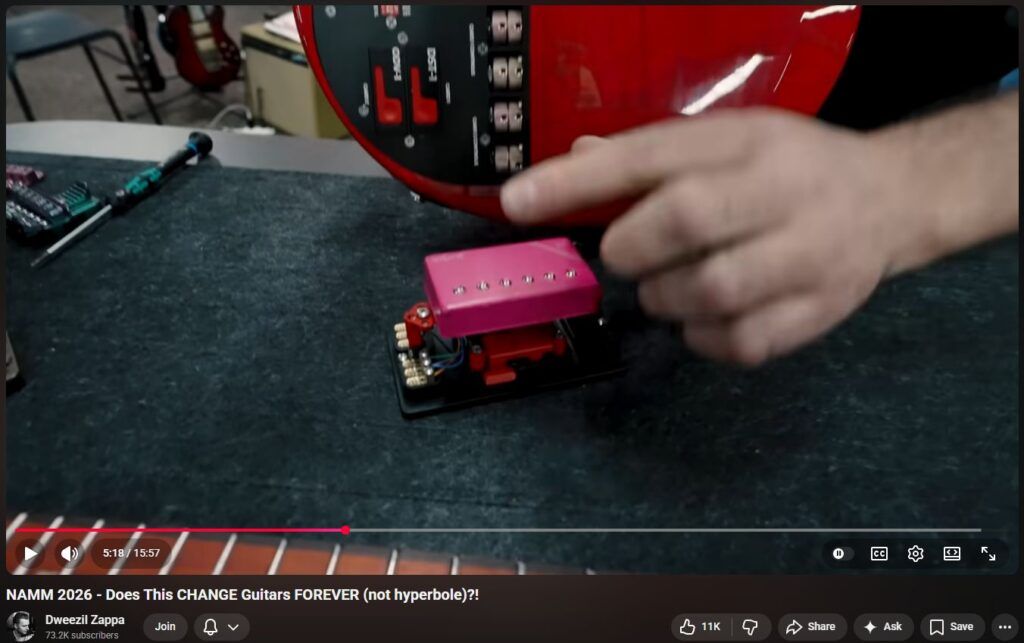

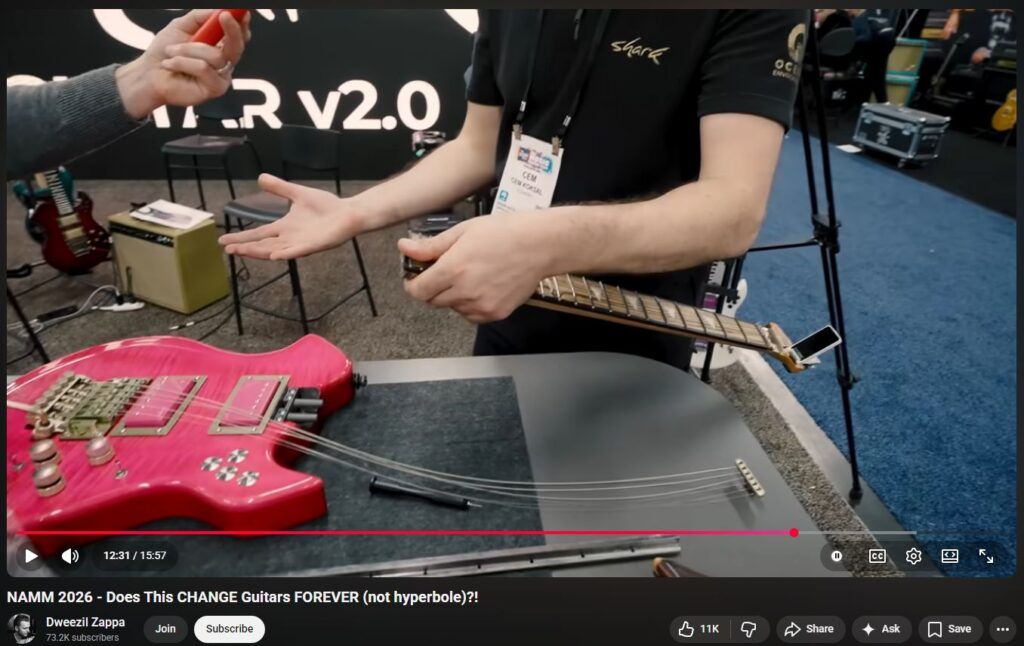

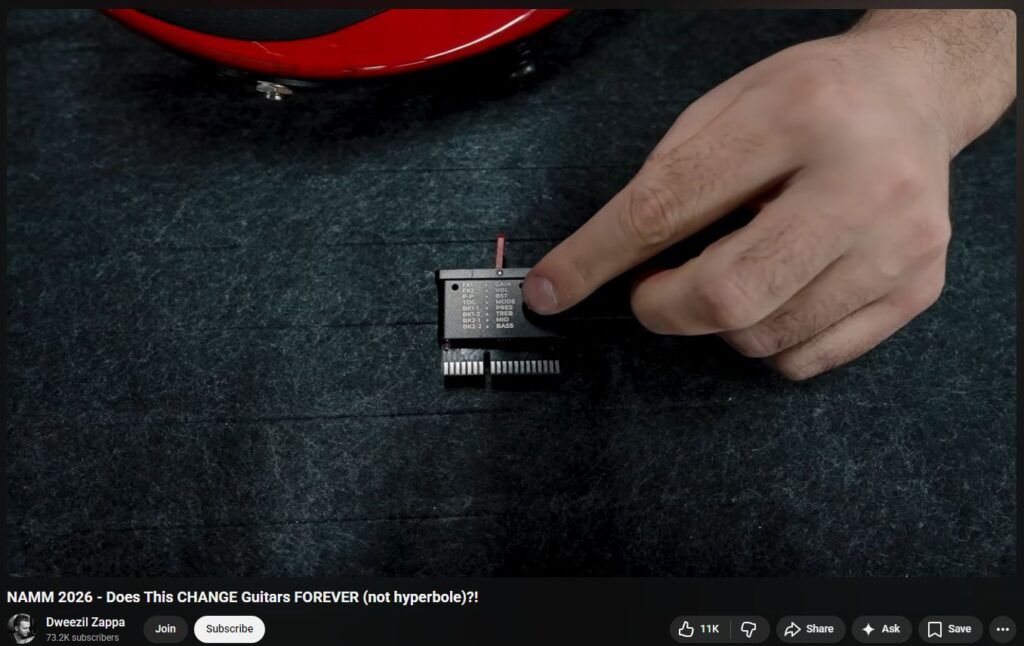

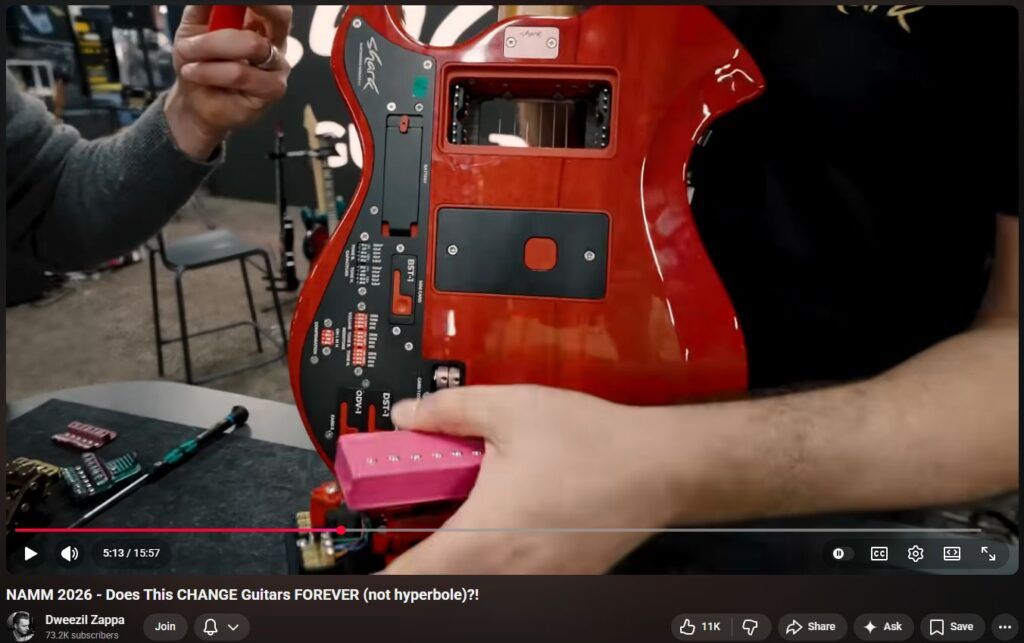

https://www.youtube.com/watch?v=xns1lLlahj4String bending does not bend tremolo (and thus) nor detune/bend any other strings making single-string bending possible.Tremolo effect is even and precise.Tuning and intonation is very easy on rear of bridge block. Quick tuning is via thumbscrew; drop-d insta-tuning is viable and proven.Intonation and tuning also available at the neck nut.Maintenance mode in one pull of tremolo bar. Tension on all strings instantly removed. Easy string replacement. Easy neck swap. Storage. Travel.More marvels in the rear. Insta-swap. Can accept any pickups / any maker. Has insta-phase inversion, just flip the pickup around and plug back in. “You can make a pickup library…”Any style, any brand (active passive). No soldering.Split-coil feature for single-coil operation, choose either with a switch.Switch-adjustable loading resistors and bypass capacitors.3 effect-pedal plugins controllable completely via front-face controls including true-bypass.Swappable in-guitar effects modules, fully controllable from guitar front controls. 12 modules already available including boost, chorus, distortion, overdriver and combinations. 4 effects possible.Dual-ganged pots and bypass switches fully control the in-guitar effects.
